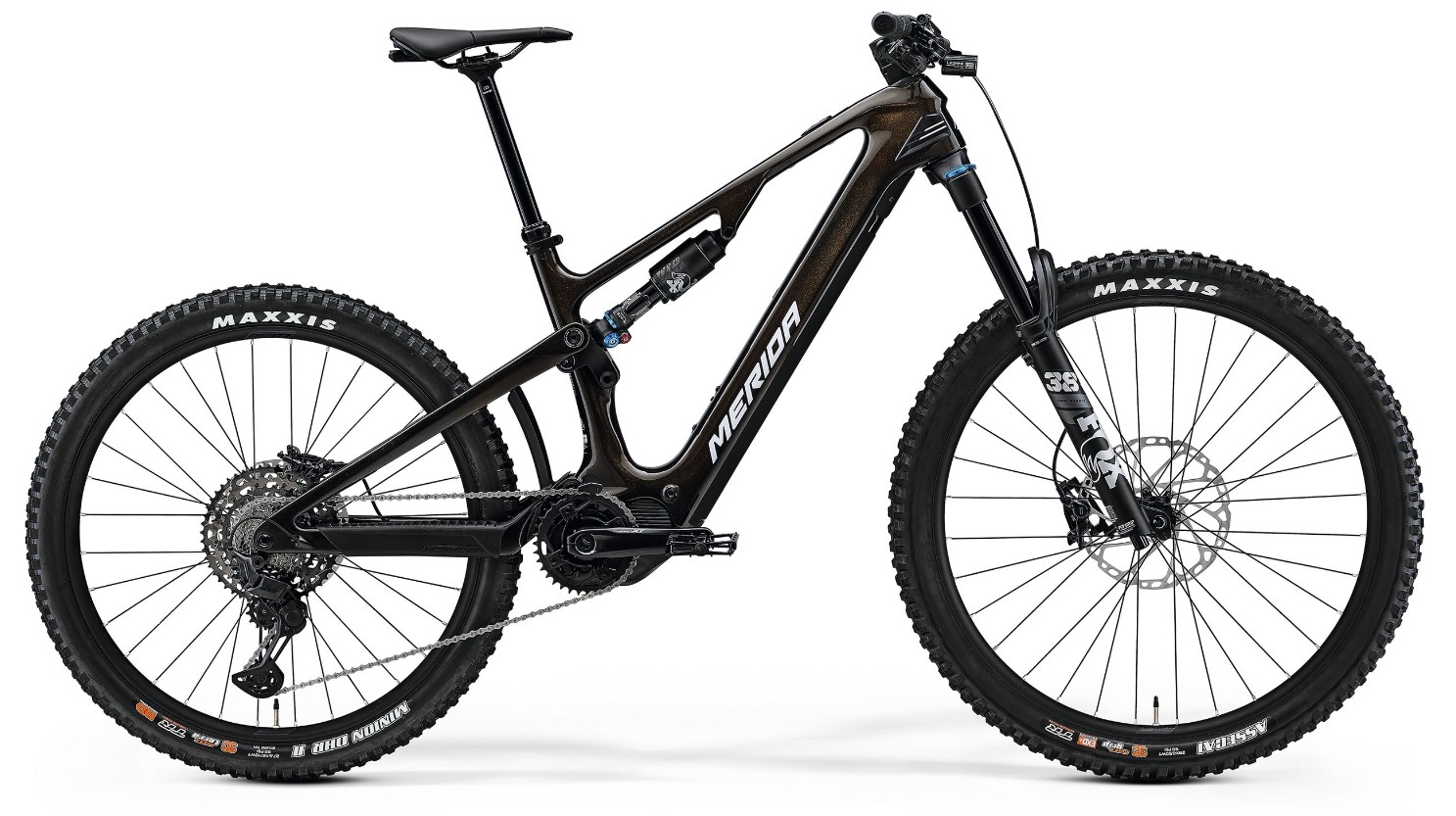

ee below for the specification of the Merida eONE SIXTY, contact us if you would like an alteration to a specification and for availability:
FRAME·
Carbon III - carbon main frame
and rear triangle internal battery. Internal cable routing via Smart entry
ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x
2.6"
MOTOR
·
Shimano Steps EP801; 85Nm
BATTERY
·
Simplo Trend Power internal
battery; 600Wh
BATTERY CAPACITY
·
600Wh
EBIKE DISPLAY
·
Shimano SC-EM800
CHARGER
·
Trendpower Simplo EU Charger; 4A
POWER BUTTON
·
CAP-045, Merida Power Button
MODE SWITCH
·
Shimano SW-EM800-L
SHOCK
·
FOX Float X Performance; 2 Pos
Lever
FORK
·
FOX 38 Performance eMTB+; Air;
170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
GEARS
·
11
SHIFTERS
·
Shimano XT M8130 and Shimano SL
-MT500-IL dropper lever
REAR DERAILLEUR
·
Shimano XT RDM8130 LinkGlide 11
speed
BOTTOM BRACKET
·
Part of Shimano Steps motor
CHAIN
·
Shimano LG500
CHAINSET
·
FSA 1x Steel chainring; 36 tooth
chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x
chainguide
CASSETTE
·
Shimano LG700; 10-50 teeth; 11
speed
BRAKE LEVER
·
Shimano XT
FRONT BRAKE
·
Shimano XT 4 piston hydraulic
disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE
·
Shimano XT 4 piston hydraulic
disc brake caliper with Shimano RT-EM600 203mm rotor
GRIP
·
Merida Expert EC
HANDLEBAR
·
Merida Expert eTR; 780mm wide;
20mm rise
STEM
·
Merida Expert eTR II; aluminium;
35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro &
Supernova mount point.
HEAD SET
·
Acros ICR Merida integrated neck
w/ Blocklock
PEDAL
·
VP Components - VPE-527
SADDLE
·
Proxim W400 T2.0 with V-mount
adapter; including Merida minitool
SEAT POST
·
Merida Team TR II; 34.9mm
diameter; in-line; all sizes 30-230mm seat post travel
WHEEL SIZE
·
29" / 27.5"
RIMS
·
Merida Expert TR II; 28mm inner
rim width; aluminium; Tubeless ready (tubeless tape and valves not included);
front 29"; rear 27.5"
SPOKES
·
Black stainless
FRONT HUB
·
Shimano XT; 110 x 15mm; 32
spokes; Centerlock
REAR HUB
·
Shimano XT; 148 x 12mm, 32
spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen
key
FRONT TYRE
·
Maxxis Assegai; 29" x
2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE
·
Maxxis DHR II; 27.5" x
2.6"; Kevlar bead, folding; 3C EXO+ TR
COLOUR
·
Gold/Silver
SEASON
·
2024
FRONT LIGHT
·
Lezyne Power STVZO E115, reverse
Merida Custom Mount
REAR LIGHT
·
USB rear Light CG-214RG
OTHER
·
Trendpower On-bike charging
cable
